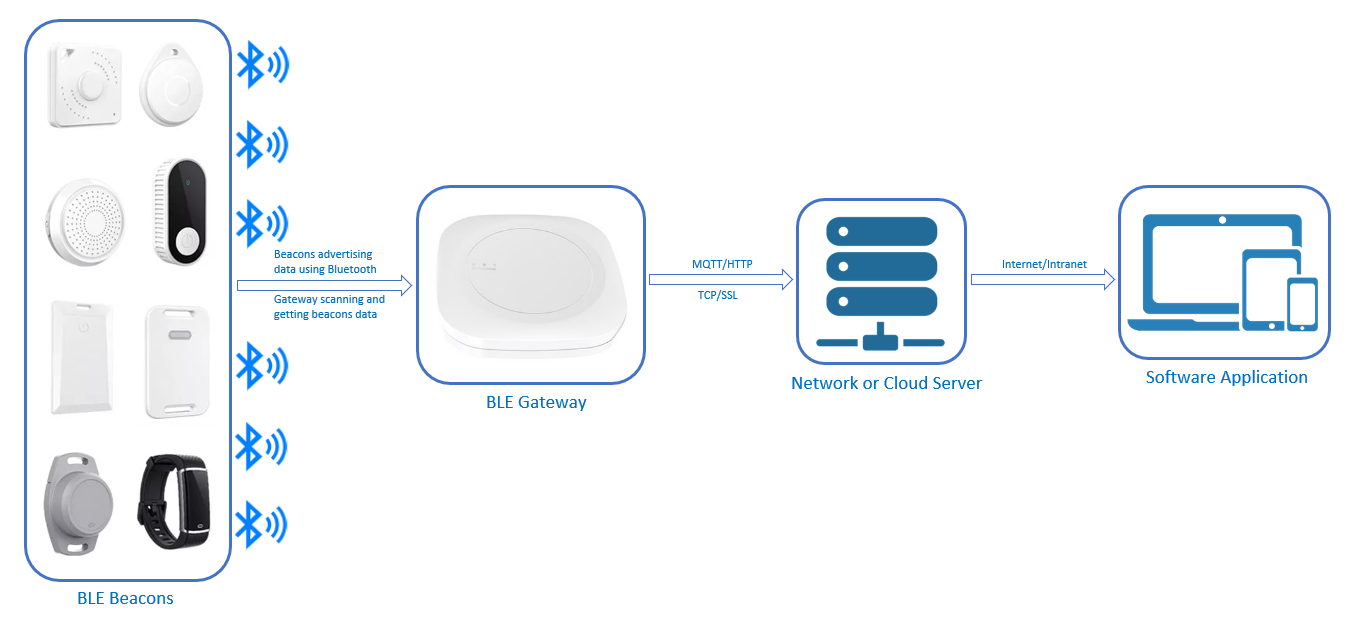

Objects Tracking, Tracing and Monitoring
using BLE

Bluetooth Low Energy (BLE) RF

Beacons

Gateways

Network

Software

Expert BLE Sensor Systems Integrator

Value Added Reseller

We bring BLE hardware from our partner OEMs.

BLE Beacons / Tags

BLE iBeacon

Good for outdoor use, Weatherproof
Size: 80x30x100 mm, Weight: 70g, IP65 Rating Battery: 1200mAh, Battery life: Up to 4 years
Rechargeable Battery: No (only replaceable)
Working temperature: -30°C ~ +60°C

Keychain Beacon 1

BLE 5.0, Supports Eddystone and iBeacon
Size: 5x32.5x7 mm, Weight: 7.8g, IP65 Rating Battery: CR2032, Battery life: Up to 12 months
Rechargeable Battery: No (only replaceable)
Working temperature: -40°C ~ +70°C

Keychain Beacon 2

BLE 5.0, Supports Eddystone and iBeacon
Size: 36x36x5.6 mm, Weight: 10g, IP44 Rating Battery: CR2032, Battery life: Up to 12 months
Rechargeable Battery: No (only replaceable)
Working temperature: -40°C ~ +70°C

Keychain Beacon 3

BLE 5.0, Supports Eddystone and iBeacon
Size: 37x37x8 mm, Weight: 13g, IP67 Rating Battery: CR2450, Battery life: Up to 36 months
Rechargeable Battery: No (only replaceable)
Working temperature: -40°C ~ +70°C

Keychain Beacon 4

BLE 5.0 w/ Accelerometer, Eddystone and iBeacon
Size: 37.6x24x5.3 mm, Weight: 7g, IP44 Rating Battery: CR2032, Battery life: Up to 16 months
Rechargeable Battery: No (only replaceable)
Working temperature: -40°C ~ +70°C

Thin & Ultra-light Beacon

BLE 5.0, Supports Eddystone and iBeacon
Size: 20x28.8x2.2 mm, Weight: 1.2g, IP67 Rating Battery: Coin, Battery life: Up to 10 months
Rechargeable Battery: No
Working temperature: -40°C ~ +70°C

Keychain Rechargeable Beacon

BLE 5.0 w/ Acceloremeter, Eddystone & iBeacon
Size: 38x38x5.5 mm, Weight: 10g, IP67 Rating Battery: Rechargeable Li-Polymer battery
Battery life: 4-6 months per charge
Working temperature: -40°C ~ +70°C

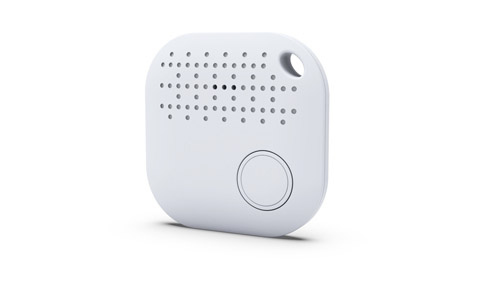

Keychain Sound Beacon

BLE 5.0 w/ Acceloremeter & Temperature sensor
SOS Button support, Available with buzzer
Size: 36x36x5.6 mm, Weight: 10g, IP44 Rating Battery: CR2032, Battery life: Up to 16 months
Working temperature: -40°C ~ +70°C

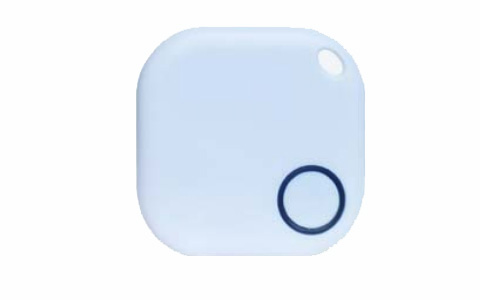

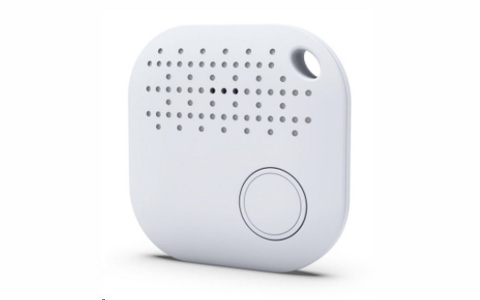

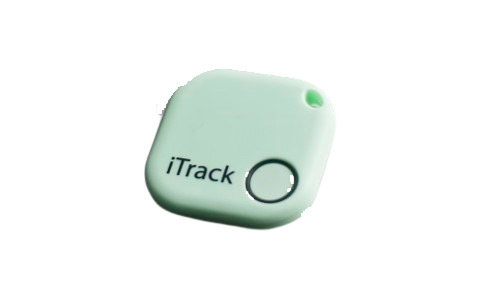

Small Tracker

BLE 5.0, Alarm method: Sound + LED light flash
Supports two-way finder from Mobile App
Size: 36 x 36 mm, Weight: 10g Battery: CR2032, Battery life: Up to 12 months
Working temperature: -40°C ~ +70°C

Small Motion Tracker

BLE 5.0, Sound+LED light flash+move alarm
Supports two-way finder from Mobile App
Size: 36 x 36 mm, Weight: 10g Battery: CR2032, Battery life: Up to 14 months
Working temperature: -40°C ~ +70°C

Mini Tracker

BLE 5.0, Key Finder, Anti-lost alarm
Supports two-way finder from Mobile App
Size: 24 x 35 mm, Weight: 7g Battery: CR2016, Battery life: Up to 12 months
Working temperature: -40°C ~ +70°C

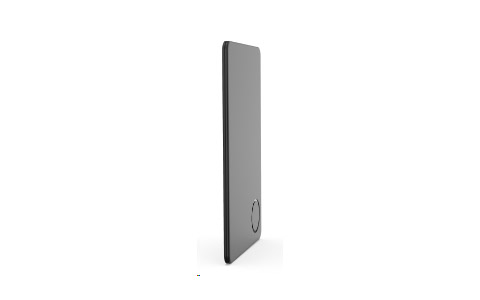

Slim Card Tracker

BLE 5.0, Sound + LED light flash alarm
Supports two-way finder from Mobile App
Size: 85 x 54 x 2.5 mm, Weight: 10g Battery: Li-ion, Battery life: Up to 2 years
Working temperature: -40°C ~ +70°C

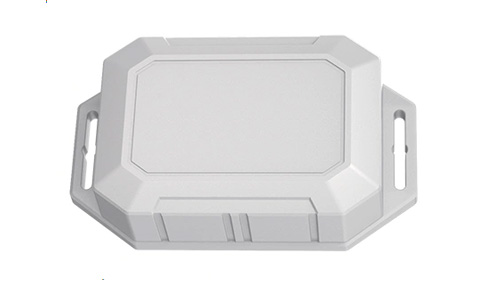

Asset Tracking Beacon 1

BLE 5.0 w/ Integrated 3 axis accelerometer
Magnetic (Hall effect sensor) switch
Size: 70x46x21 mm, Weight: 34g, IP67 Rating Battery: CR2477, Battery life: Up to 4 years
Working temperature: -40°C ~ +70°C

Asset Tracking Beacon 2

BLE 5.0 w/ Acceloremeter, Eddystone & iBeacon
Waterproof with Silicone surface material
Size: 46x39x22 mm, Weight: 37g, IP68 Rating Battery: CR2477, Battery life: Up to 4 years
Working temperature: -40°C ~ +70°C

Asset Tracking Beacon 3

BLE 5.0 w/ Acceloremeter & Temperature sensor
Waterproof w/ ABS+Silicone surface material
Size: Dia.40 x 18 mm, Weight: 37g, IP67 Rating Battery: CR2477, Battery life: Up to 4 years
Working temperature: -40°C ~ +70°C

Asset Tracking Beacon 4

BLE 5.0 w/ Acceloremeter & Temperature sensor
Waterproof w/ ABS+Silicone surface material
Size: Dia.40 x 15.7 mm, Weight: 25g, IP67 Rating Battery: CR2477, Battery life: Up to 4 years
Working temperature: -40°C ~ +70°C

Asset Tracking Beacon 5

BLE 5.0 w/ Acceloremeter & Temperature sensor
Waterproof w/ ABS+Silicone surface material
Size: Dia.47 x 15 mm, Weight: 25g, IP65 Rating Battery: CR2477, Battery life: Up to 4 years
Working temperature: -40°C ~ +70°C

Industrial/Pallet Beacon 1

Compatible with Eddystone and iBeacon
3-axis accelerometer sensor
IP67 + 10 years of battery life

Industrial/Pallet Beacon 2

BLE 5.0 w/ Acceloremeter & Temperature sensor
Waterproof - Industrial plastic surface material
Size: 58x36x25 mm, Weight: 30g, IP67 Rating Battery: ER14505, Battery life: Up to 8 years
Working temperature: -40°C ~ +70°C

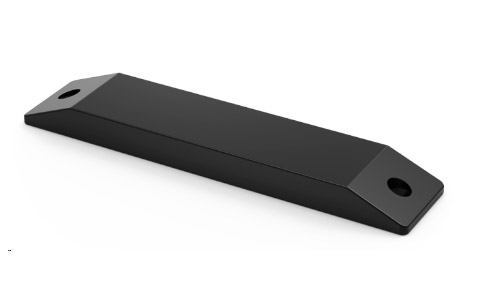

Industrial/Pallet Beacon 3

BLE 5.0 w/ Acceloremeter & Temperature sensor
Waterproof - Industrial plastic surface material
Size: 127x26x10 mm, Weight: 30g, IP68 Rating Battery: 1000mAh, Battery life: Up to 4 years
Working temperature: -40°C ~ +70°C

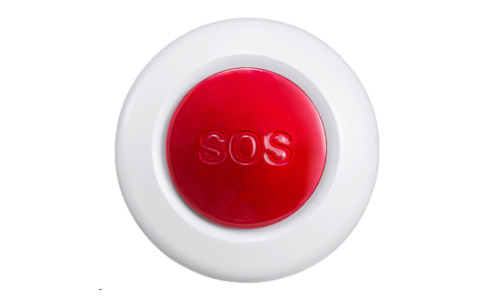

SOS Button

BLE 5.0, Supports iBeacon & Eddystone
Support single/double/triple/long click
Size: Dia 60mm x 18mm, Weight: 30g Battery: CR2450, Battery life: Up to 3 years
Working temperature: -40°C ~ +70°C

Panic Button

BLE 5.0, Supports iBeacon & Eddystone
Support single/double/triple/long click
Size: Dia 50mm x 18mm, Weight: 30g Battery: CR2032, Battery life: Up to 1.5 years
Working temperature: -40°C ~ +70°C

Navigation Beacon

Compatible with Eddystone and iBeacon
IP67 + 2.5 years battery, replaceable Built-in Motion Sensor

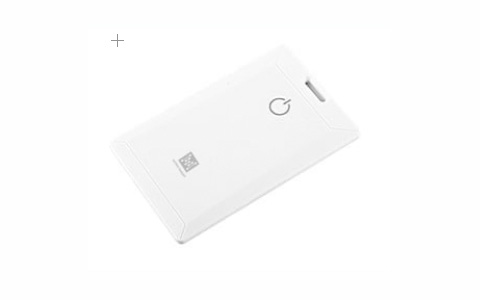

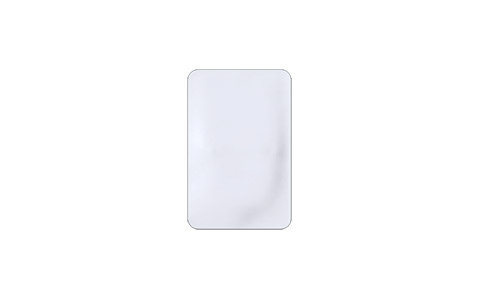

Beacon Card

Compatible with Eddystone and iBeacon
IP67 + 4 years battery, non-replaceable Built-in Motion Sensor

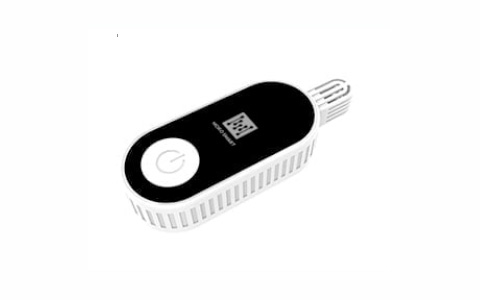

Temperature & Humidity Beacon

Compatible with Eddystone and iBeacon
IP66 + 3 years battery, replaceable SHT31 T&H sensor with trigger function

Light Sensor Beacon

Compatible with Eddystone and iBeacon
IP66 + 1 year battery, replaceable LED + 3-axis accelerometer sensor

Indoor Positioning Beacon

Compatible with Eddystone and iBeacon
IP65 + 1 year battery, replaceable Built-In Motion Sensor

RFID Beacon

Compatible with Eddystone and iBeacon
IP67 + 2 years battery, replaceable HF 13.56 MHz RFID Tag + Motion sensor

Ultra Thin Beacon

Compatible with Eddystone and iBeacon
IP54 + 1 year battery, replaceable Built-in Motion sensor

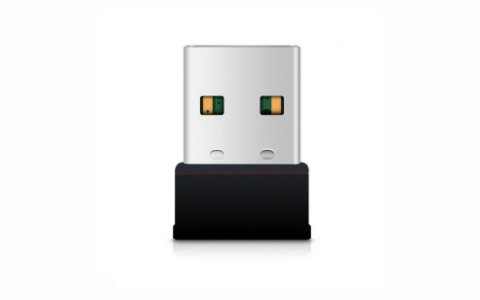

USB Beacon

Compatible with Eddystone and iBeacon
No Battery, Plug and Play Wide Compatibility

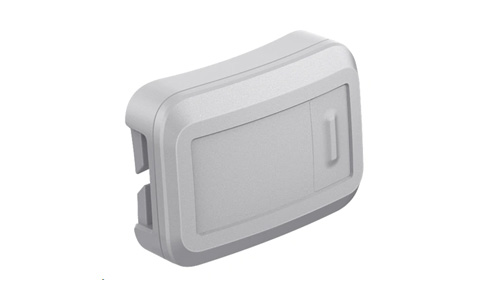

Helmet Beacon

Compatible with Eddystone and iBeacon
3-axis accelerometer sensor
IP67 + 24 months of battery life

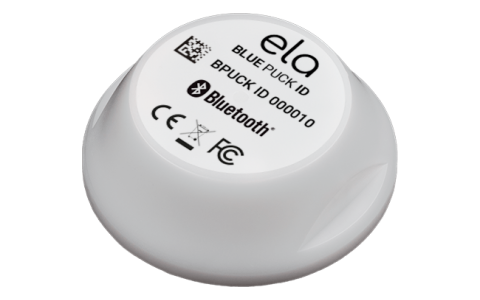

PUCK Beacon

Rugged, ideal for any environment
Magnetic, motion, temperature, humidity sensors
IP67 + 60 months of battery life

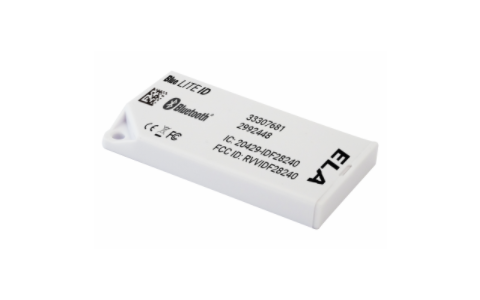

Lite Beacon

Pick to Light LED integrated into the beacon
Can be activated remotely on assets
IP67 + 36 months of battery life

Ultralite Beacon

Localization and automated inventory management
Can be activated remotely on assets
IP67 + 12 months of battery life

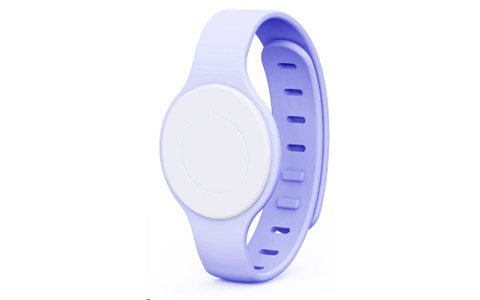

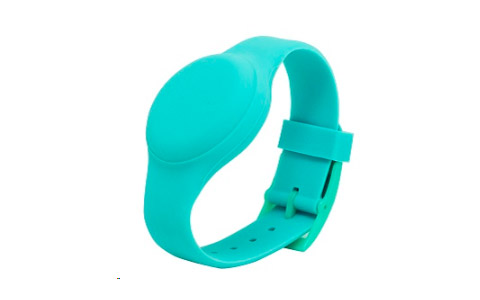

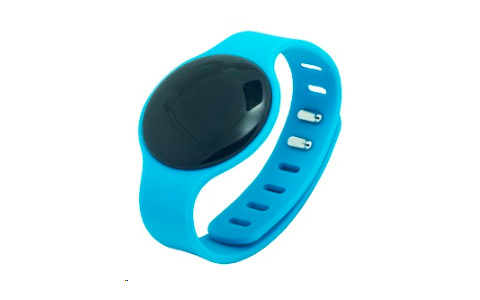

Wearable Beacon

BLE 5.0, Designed for Kids, Eddystone and iBeacon
Dial size:32 mm； Length of strap:187 mm Weight: 16g, IP56 Rating
Battery: CR2025, Battery life: Up to 6 months
Working temperature: -40°C ~ +70°C

Rechargeable Wearable Beacon

BLE 5.0, Multiple colors options
Dial size:40 mm； Length of strap:260 mm Battery: Li-polymer battery (rechargeable)
Battery life: 4 months per charge, Weight: 23g
Working temperature: -40°C ~ +70°C

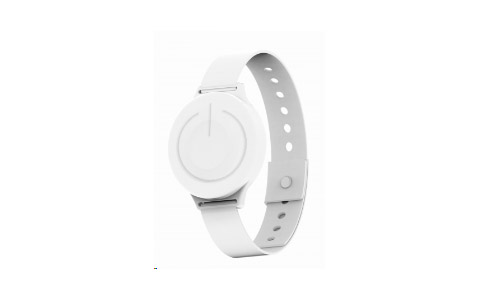

Wearable Bracelet Beacon

BLE 5.0, Multiple colors options
Dial size:40 mm； Length of strap:260 mm Battery: CR2032, Battery life: Up to 6 months
ABS+silicone loop, Weight: 23g
Working temperature: -40°C ~ +70°C

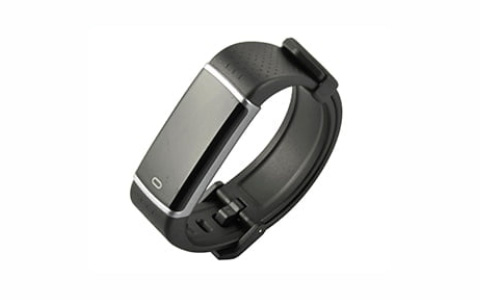

Rechargeable Wristband Beacon 1

BLE 5.0, w/ 3-axis accelerometer sensor
Size:251x20.2x12mm, IP67 Rating Battery: Li-polymer battery (rechargeable)
Battery life: 4 months per charge, Weight: 24.8g
Working temperature: -40°C ~ +70°C

Rechargeable Bracelet Beacon 2

BLE 5.0, Multiple colors options
Size:40x18x9.5mm, band 260mm, IP67 Rating Battery: Li-polymer battery (rechargeable)
Battery life: 4 months per charge, Weight: 33g
Working temperature: -40°C ~ +70°C

Wearable Wristband Beacon

Compatible with Eddystone and iBeacon
IP67 + 1 year battery, replaceable Built-In Motion Sensor

Bluetooth Beacon Tracker

Compatible with Eddystone and iBeacon
IP68 + 5 months battery, rechargable Built-In Motion Sensor

Medical Wristband Beacon 1

BLE 5.0, Supports SOS Button, NFC Optional
Size: Dia34mm x 8.4mm； Length of strap:250mm Battery: CR2032, Battery life: Up to 16 months
ABS+TPU loop, Weight: 23g, IP67 Rating
Working temperature: -40°C ~ +70°C

Medical Wristband Beacon 2

BLE 5.0, w/ 3-axis accelerometer sensor
Size: 40x32x10.3 mm ； Length of strap:260mm Battery: CR2032, Battery life: Up to 16 months
ABS+PC & TPE (Beacon), Weight: 10g, IP67 Rating
Working temperature: -40°C ~ +60°C

Tamperproof Medical Wristband

BLE 5.0 w/ Cut-off Alert, Support SOS Button
Size: Dia30 mm； Length of strap:250mm Battery: CR2025, Battery life: Up to 4 months
ABS+TPU loop, Weight: 15g, IP67 Rating
Working temperature: -40°C ~ +70°C

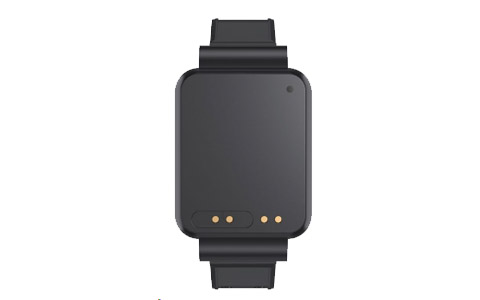

Rechargeable Durable Wristband

BLE 5.0 w/ Body temperature sensor
Size: 45 x 50 x 260 mm, IP67 Rating Battery: Li-polymer battery (rechargeable)
Battery life: 18 months per charge, Weight: 48g
Working temperature: -40°C ~ +70°C

BLE Gateways

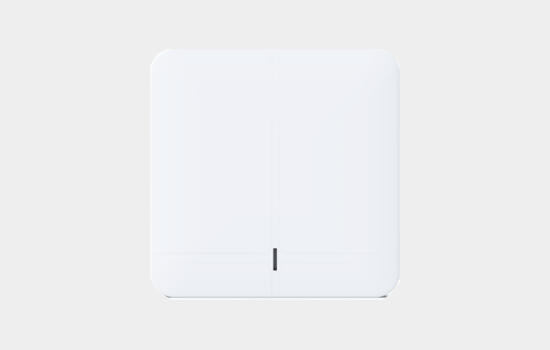

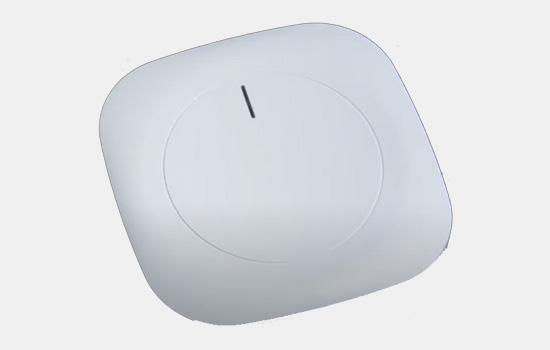

BLE Gateway

Bluetooth Standard: BLE5.0 （nRF52832）
Power: PoE(48V),DC(9V) and Micro USB(5V)
Protocol: MQTT （TCP/SSL), HTTP/HTTPS
Network: Ethernet and WiFi
Dimension: 120 x 120 x 22.5 mm

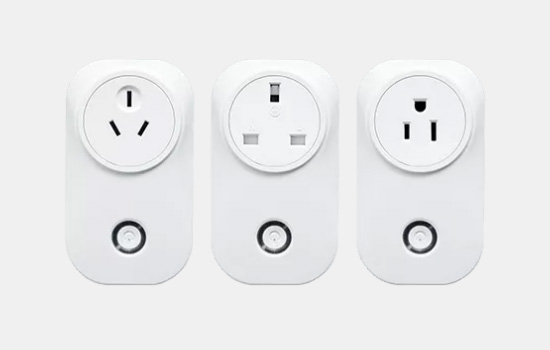

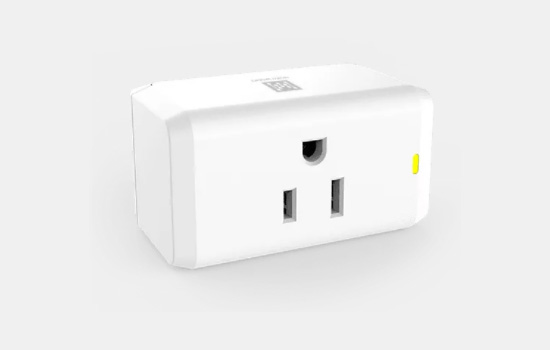

BLE Plug Gateway

Supports BLE & WiFi communication
Plug Type: US/EU/UK/AU/FR
Certification: CE/ETL/FCC/RoHS
Network: WiFi IEEE 802.11b/g/n
Dimension: 110 x 62 x 67 mm

BLE Plug Gateway

Supports BLE & WiFi communication
Plug Type: US/EU/UK/AU/FR
Certification: CE/ETL/FCC/RoHS
Network: WiFi IEEE 802.11b/g/n
Dimension: 110 x 62 x 67 mm

BLE Gateway

Support Wi-Fi / Ethernet / Cellular
Protocol: MQTT （TCP/SSL), HTTP/HTTPS
Optional 4G LTE module & GPS module
Built-in RTC and NTP support
Power: POE or DC 5V

Outdoor BLE Gateway

Supports 3G/4G, WiFi, Ethernet
Protocol: MQTT （TCP/SSL), HTTP/HTTPS
ETH/Wifi/Wifi-hopping or USB (3G/4G)
Built-in RTC and NTP support
Power: POE or DC 5V

BLE Gateway

Supports 3G/4G, WiFi, Ethernet
Protocol: MQTT （TCP/SSL), HTTP/HTTPS
ETH/Wifi/Wifi-hopping or USB (3G/4G)
Data Saved in TF Card if No Network
Power: DC 5V

We understand that each client’s requirements are unique, so we are ready to provide a personalized consultative approach to our customers. Please contact us at info@anantics.com so that we may start the discussion about your organization’s needs.
