Objects Tracking, Tracing and Monitoring
using LoRaWAN

Long Range Wide Area Network (LoRaWAN)

Beacons

End-Nodes

Gateways

Software

Expert LoRaWAN Systems Integrator

Value Added Reseller

We bring LoRaWAN hardware from our partner OEMs.

LoRaWAN GPS Trackers

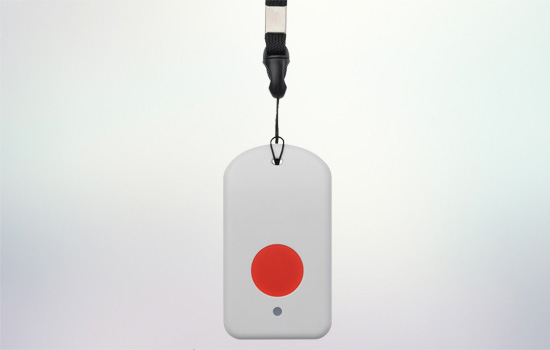

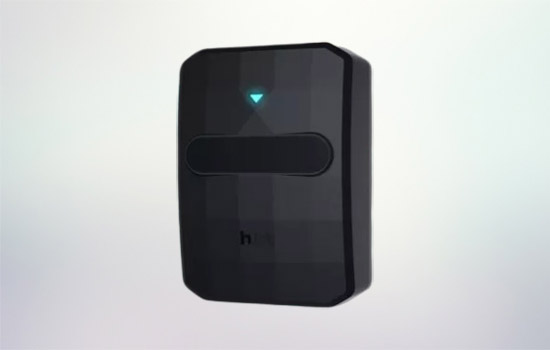

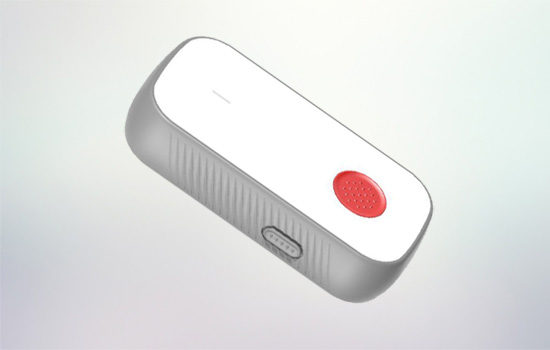

Personal BLE/GPS Tracker

Supports GPS outdoor and BLE indoor
Panic button to raise alerts
3-Axis Accelerometer Motion Sensor
Rechargeable 540mA Li-ion Battery
Size: 75mm x 38.9mm x 15.5mm
Weight: 48 gram
IP Rating: IP66

GPS Tracker w/ Sensors

Regular/ Real-time GPS, BLE, WiFi tracking
Humidity / temperature sensor: GXHT3X
Built-in3 axis accelerometer: LIS3DH
Tri-color LED, Alarm Buzzer button
Rechargeable 1000mA Li-on Battery
Size: 85mm x 48mm x 15 mm
Weight: 55 gram

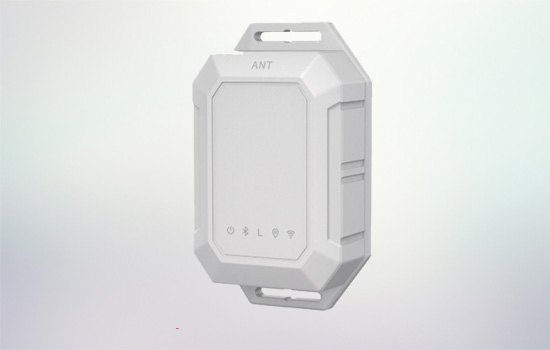

Industrial BLE/GPS Tracker

Integrates GPS/BLE/WiFi positioning
Supports anti-tamper alarm
7680mAH no-chargeable battery
Supports motion/idle/vibration detection
Size: 122mm x 72mm x 33mm
Multiple working modes
IP Rating: IP67

Solar GPS Tracker

High sensitivity GPS/ GNSS
High performance solar panel
IPX7 waterproof rating
Low power alert
Size: 80mm x 19.17mm x 79.10 mm
Weight: 82 gram
IP Rating: IPX7

ATEX GPS Tracker

Built-in GNSS(GPS + Glonass) solution
Built-in BLE and Wi-Fi for indoor location
Built-in 3-axis accelerometer
19Ah non-rechargeable battery
Operational at -20°C to + 60°C
Configurable periodic report
ATEX/IECEx Compliant

Asset BLE/GPS Tracker

GPS Asset Tracker with Long Battery Life
Built in BLE for beacon (Indoor positioning)
Power Low/ Off alert
Supports LoRaWAN Class A / Class C
Size: 84mm x 69.6mm x 52.8mm
Weight: 98g (w/o battery); 200g (/w battery)
IP Rating: IP67

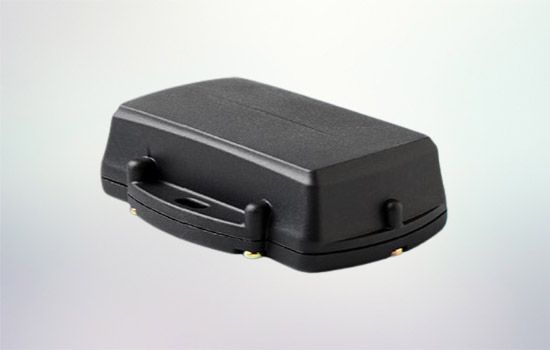

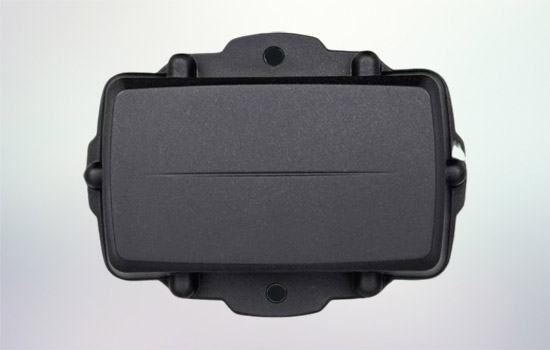

Ultra-Rugged GPS Tracker

Concurrent GPS, GLONASS, Galileo, QZSS
User-Replaceable Batteries: 3 x AA
3-Axis Accelerometer to detect movement
Periodic or Movement-Based updates
Size: 108mm x 86mm x 30 mm
Weight: 180 gram
IP68 and IK07-rated housing

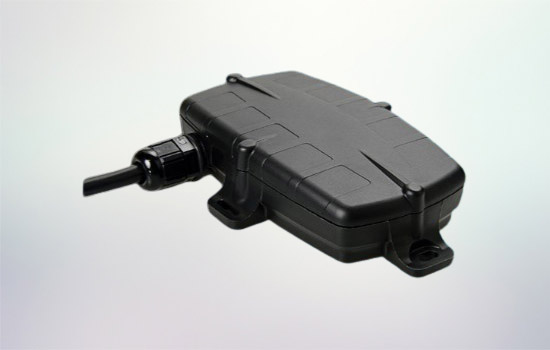

Ultra-Rugged Fleet Tracker

1 x Analog Inputs, 2 x Digital Inputs
1 x Switched Ground Digital Output
1 x Ignition Digital Input
On-Device Odometer Readings
Size: 125mm x 80mm x 25 mm
Weight: 170 gram
IP67 and Ultra-Rugged Nylon Glass housing

Compact GPS Tracker

Concurrent GPS, GLONASS, Galileo, QZSS
User-Replaceable Batteries: 3 x AAA
3-Axis Accelerometer to detect movement
Periodic or Movement-Based updates
Size: 84mm x 63mm x 24mm
Diagnostic LED indicates operation status
IP68 and IK06-rated housing

LoRaWAN Temperature & Humidity Sensors

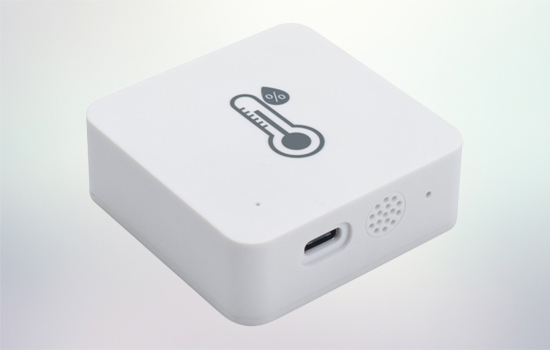

Temp & Humidity Sensor

Senses environment temperature & humidity
Temperature Operating Range: -20 ~ 50 °C
Humidity Operating Range: 0 ~ 99 %RH
Tri-color LED to indicate status
Powered by 2 x AAA LR03 batteries
Temperature alarm feature
Supports External Temperature Sensors

Temp & Humidity Sensor

Built-in Temperature & Humidity sensor
Temperature Operating Range: -40 ~ 80 °C
Humidity Operating Range: 0 ~ 96 %RH
Tri-color LED to indicate status
Built-in 2400mAh non-chargeable battery
Supports External Sensor Probe
Supports Datalog feature

T, H & Illuminance Sensor

Temperature, Humidity & Illuminance sensor
Temperature Operating Range: -40 ~ 80 °C
Humidity Operating Range: 0 ~ 96 %RH
External Illuminance Range: 0-65535 lx
Tri-color LED to indicate status
Built-in 2400mAh non-chargeable battery
Cable length: 50cm

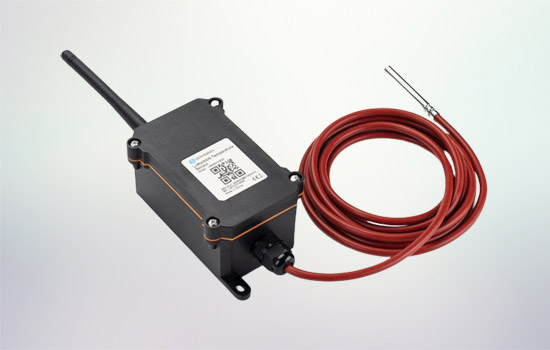

Outdoor Temp Sensor - 1

Measure temperature of air, liquid or object
Temperature measure range -55°C ~ 125°
Waterproof, moisture-proof and anti-rust
Powered by 8500mAh Li-SOCI2 battery
AT commands to change parameters
Supports temperature alarm feature
External Temperature Probe

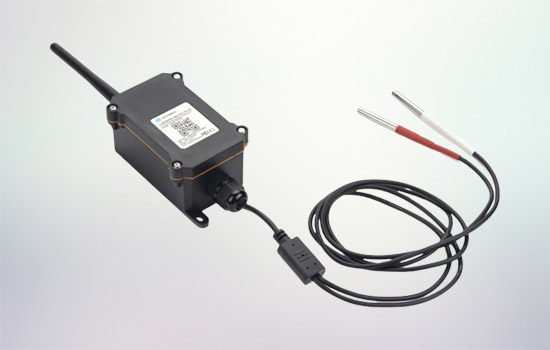

Outdoor Temp Sensor - 2

Measure temperature of air, liquid or object
Temperature measure range -55°C ~ 125°
Waterproof, moisture-proof and anti-rust
Powered by 8500mAh Li-SOCI2 battery
AT commands to change parameters
Supports temperature alarm feature
2 x External Temperature Probes

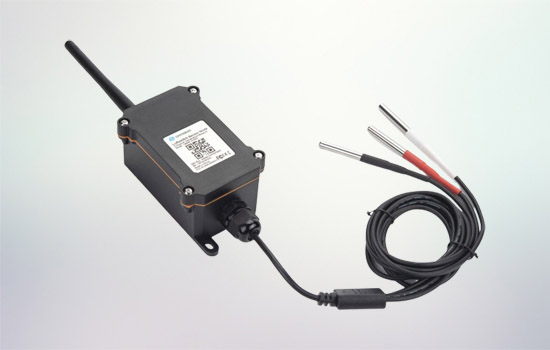

Outdoor Temp Sensor - 3

Measure temperature of air, liquid or object
Temperature measure range -55°C ~ 125°
Waterproof, moisture-proof and anti-rust
Powered by 8500mAh Li-SOCI2 battery
AT commands to change parameters
Supports temperature alarm feature
3 x External Temperature Probes

LoRaWAN Distance & Level Detection Sensors

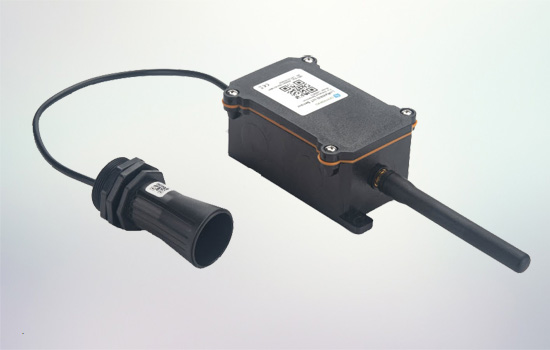

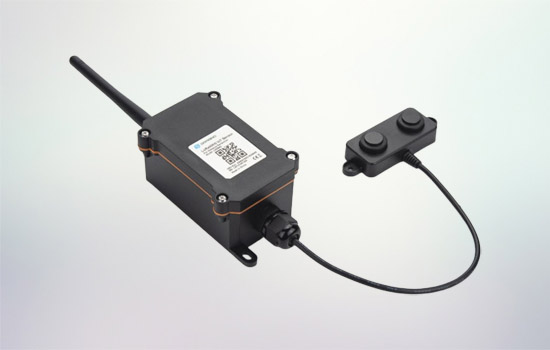

Distance Detect Sensor - 1

Detection by Ultrasonic Technology
Read range 28 cm - 7.5 meters
Temperature compensation in measurements
Ultra low power consumption
Waterproof and anti-rust
Can be used for solid or liquid levels
Powered by 8500mAh Li-SOCI2 battery

Distance Detect Sensor - 2

Detection by Ultrasonic Technology
Read range 30 cm - 4.5 meters
Temperature compensation in measurements
Ultra low power consumption
Waterproof and anti-rust
Can be used for solid or liquid levels
Powered by 8500mAh Li-SOCI2 battery

Distance Detect Sensor - 3

Detection by Ultrasonic Technology
Up to 4 Sensors to measure distances
Read range 30 cm - 4.5 meters
Temperature compensation in measurements
Waterproof and anti-rust
Can be used for solid or liquid levels
Powered by 8500mAh Li-SOCI2 battery

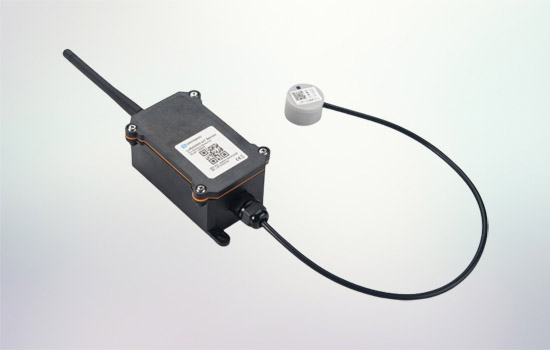

Liquid Level Sensor

Ultrasonic liquid level sensor
Read range 20 mm - 2.0 meters
Waterproof, moisture-proof and anti-rust
Powered by 8500mAh Li-SOCI2 battery
AT commands to change parameters
Used in high-temperature and high-pressure
Used for Toxic substances, acids, alkalis

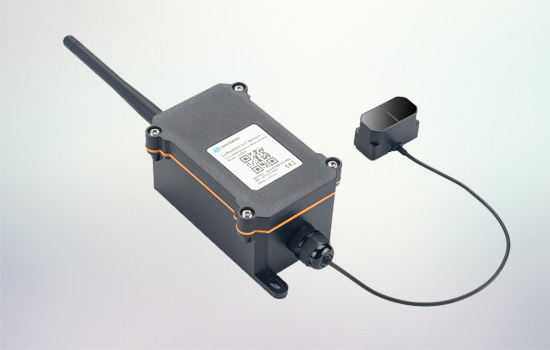

LiDAR ToF Distance Sensor

LiDAR ToF (Time of Flight) Distance Sensor
Read range 10 cm - 12 meters
0.1m ~ 12m @ 90% Reflectivity
0.1m ~ 4m @ 10% Reflectivity
Ambient light immunity : 70klux
Can be used for solid or liquid levels
Powered by 8500mAh Li-SOCI2 battery

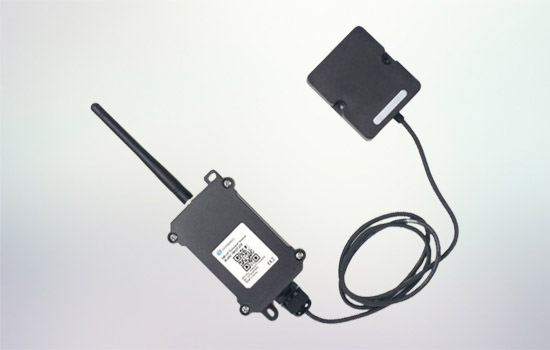

Microwave Radar Sensor

Uses 24Ghz Microwave to detect the distance
Reliable for condensation/dusty environment
Read range 0.5 meter ~ 20 meters
Horizontal Angel: 78°
Vertical Angel: 23°
Can be used for solid or liquid levels
Powered by 8500mAh Li-SOCI2 battery

LoRaWAN Agriculture & Weather Sensors

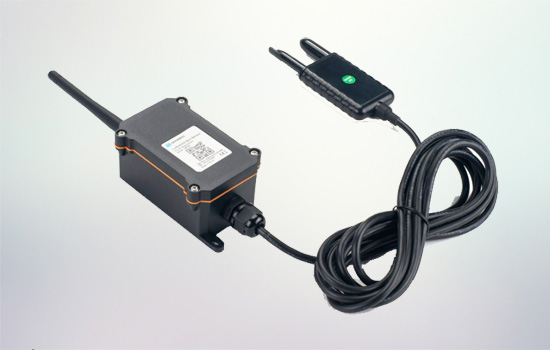

Soil pH Sensor

Measure the soil pH and soil temperature
Pure metal pH sensitive electrode
Solid AgCl reference electrode
pH with high accuracy and stable value
8500mAh Li-SOCI2 battery (5 years life)
Waterproof and anti-rust

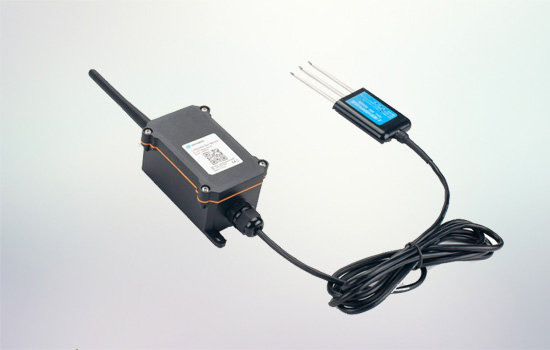

Soil NPK Sensor

Measure the Soil Fertility Nutrient
Soil's Nitrogen, Phosphorus & Potassium
Long range spread spectrum communication
8500mAh Li-SOCI2 battery (5 years life)
Sensor cable is waterproof and anti-rust
Set of unique keys for LoRaWAN registration

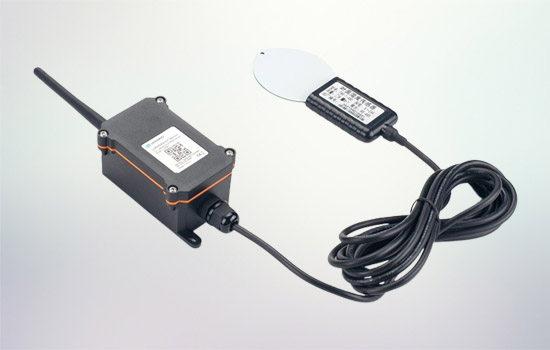

Leaf Moisture Sensor

Detects leaf's moisture and temperature
Monitor watering, moisturizing, dew, frozen
Senses even small drop with more accuracy
Ultra-low power consumption
Waterproof and anti-rust
Powered by 8500mAh Li-SOCI2 battery

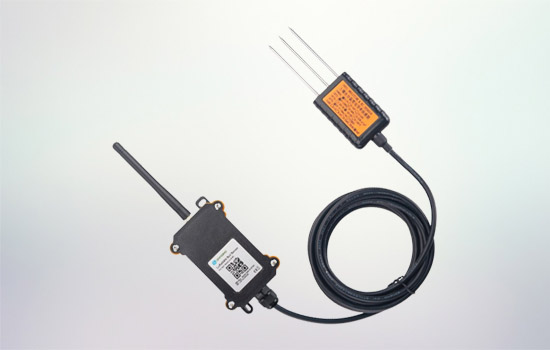

Soil Moisture & EC Sensor

Soil Moisture, Temperature and Conductivity
FDR method to calculate the soil moisture
Calibrated in factory for Mineral soil type
Powered by 8500mAh Li-SOCI2 battery
Ultra-low power consumption
Waterproof and anti-rust

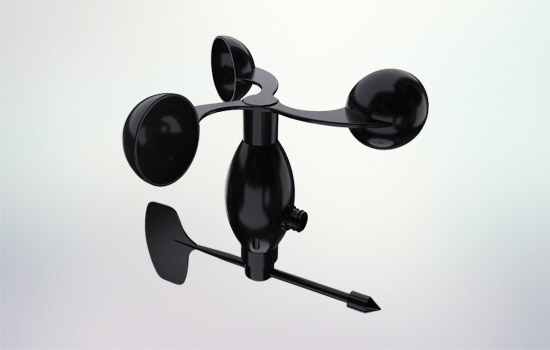

Wind Speed & Direction

Wind speed and direction sensor
Wind speed range: 0 ~ 60m/s
Wind direction range: 0 ~ 360°
Start wind speed: ≤0.3m/s
Input Power: DC 5~24v, Interface: RS485
Working Temperature: -30℃～70℃

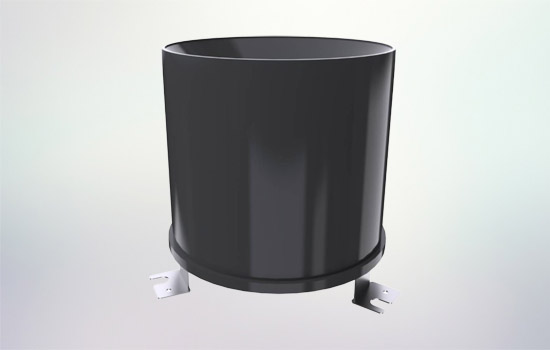

Rain Gauge Sensor

Uses a tipping bucket to detect rainfall
Resolution: 0.2mm
Input Power: DC 5~24v, Interface: RS485
Working Temperature: 0℃～70℃
Supports weather station solution
Rainfall strength: 0mm～8mm/min

LoRaWAN Multi-Applications Sensors

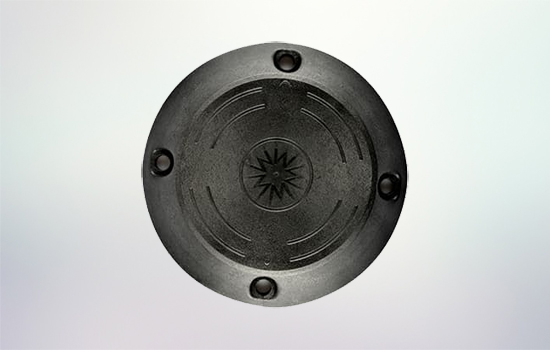

Smart Parking Sensor

Surface-mounted geomagnetic sensor
Accurate detection of parking space
With built-in Li-SOCl2 battery
Built-in temperature sensor
Industrial use of -40℃～+85℃
IP68 protection

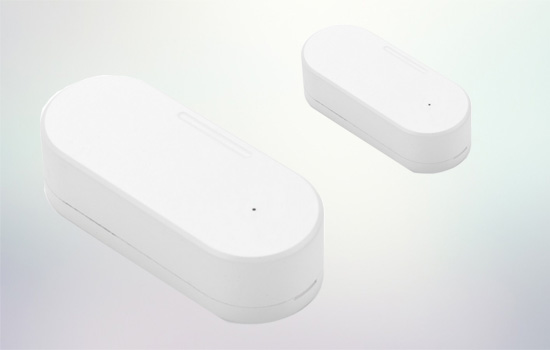

Door Open/Close Detect

Detects Door Open and Close Status
Counts door open times & last open duration
Door Open Alarm Feature
Set of unique keys for LoRaWAN registration
Powered by 2 x AAA batteries
Configuration for data uplinks

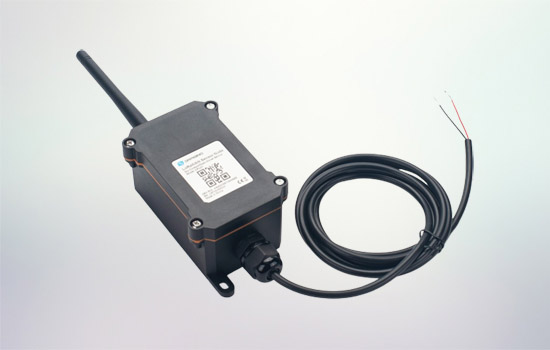

Contact Detect Sensor

Open/Close Dry Contact Sensor
Datalog feature
Alarm feature for events
Counts the contact open times
Calculates the last open duration
Can be used outdoor
Powered by 8500mAh Li-SOCI2 battery

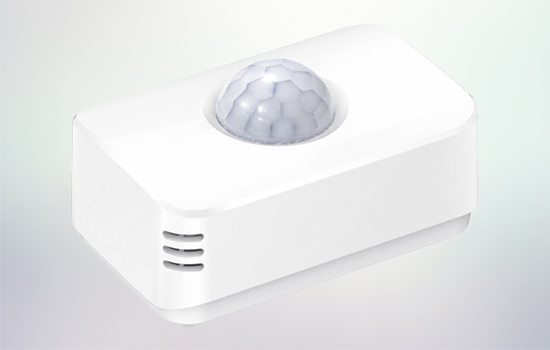

PIR Motion Sensor

Passive Infrared and Fresnel Lens
Long detection range (Max. 8m)
Wide detection angle (H 120°, V 60°)
Built-in Temperature & Humidity Sensor
5200 mAH lithium sub-battery
Door status detection

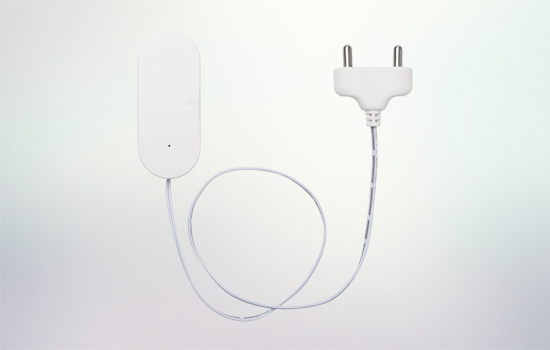

Water Leak Detection

Detects water leak between probes
Uplink periodically and water leak event
AT commands to change parameters
Downlink to change configure
2 x AAA batteries
SX1262 LoRa Core

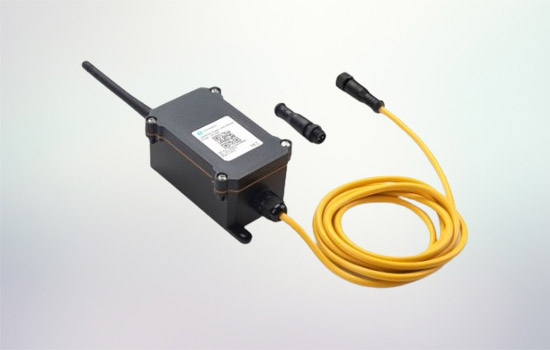

Water Leak Controller

Water Leak Cable to detect water leakage
Counts the water leak times
Calculates last water leak duration
AT Commands to change parameters
Uplink on periodically and leakage event
Powered by 8500mAh Li-SoCI2 battery

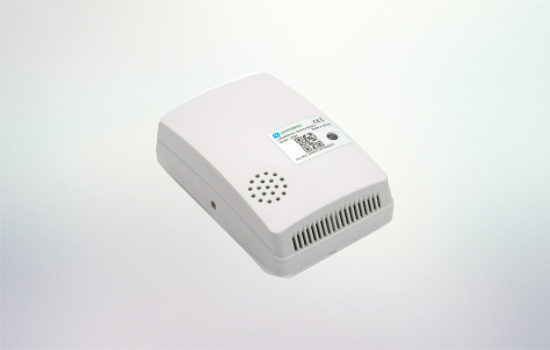

Air Quality Sensor

TVOC (Total Volatile Organic Compound)
eCO₂ (equivalent Carbon Dioxide)
Temperature and relative Air Humidity
Alarm for TVOC, CO2 monitoring
Size: 110mm x 70mm x 30 mm
Net Weight: 130 gram

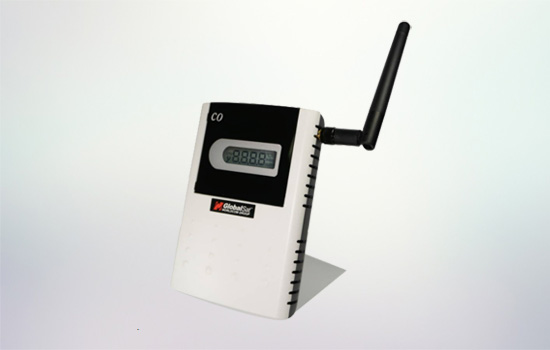

CO, Temp, RH Detector

Carbon Monoxide/Temp/Humidity values
Integrated with calibrated CO sensor
Integrated w/ compensated Temp/RH sensor
8~24V /or Micro-USB DC power-in, 5V
Size: 113.57(H) x 80(W) x 28.79(D) mm
Net Weight: 103 gram

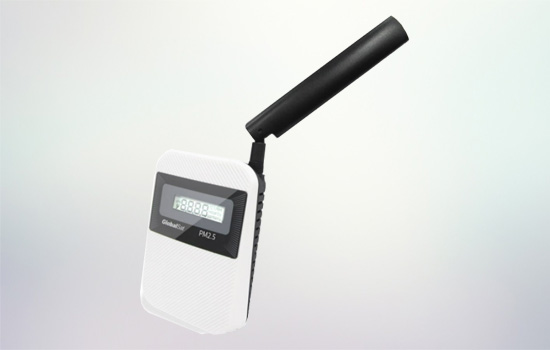

PM_2.5, Temp, RH Detector

Particle, Temperature and Humidity values
Calibrated dust (PM_2.5) sensor module
Integrated w/ compensated Temp/RH sensor
8~12V /or Micro-USB DC power-in, 5V
Size: 117.3(H) x 84.1(W) x 28.1(D) ± 0.1 mm
Net Weight: 132 gram

Smoke and Heat Detector

M2M/IoT station with LoRaWAN compliant
Advanced Photoelectric Sensing Technology
Rating Voltage: DC 3V for lithium battery
Sensitivity & Alarm Pattern: Temporal Three
Size: (Diameter)120 mm x (Depth)53 mm
Net Weight: 112.5 gram

People Counter

Counts people crossing a horizontal line
Infrared (IR) transmitter and receiver
IR transmitter and receiver works together
Powered by AA Batteries
Enhanced Noise Immunity
Free from GDPR issues

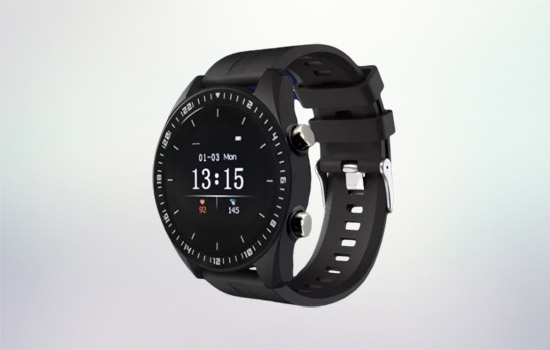

Smart Watch

Built-in GNSS and Bluetooth module
Detects heart rate and number of steps
240*204 TFT Display
Polymer battery，400mAh， 3.8V
Magnetic charging cable
IP67 protection

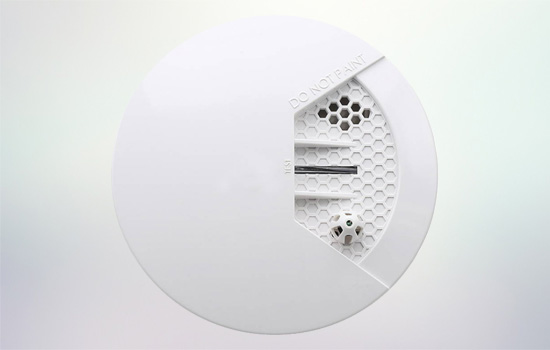

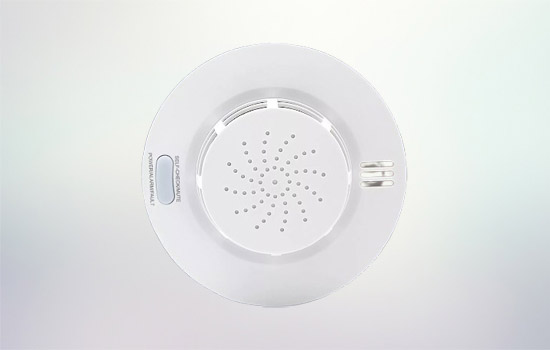

Smoke Detector

Electro-optical sensor to detect smoke
Generates a sound signal (80dB)
Generates a light alert
Alert message through LoRa data network
Built-in Li-SOCL2 battery
Dimension: Dia 119mm x 45.5mm

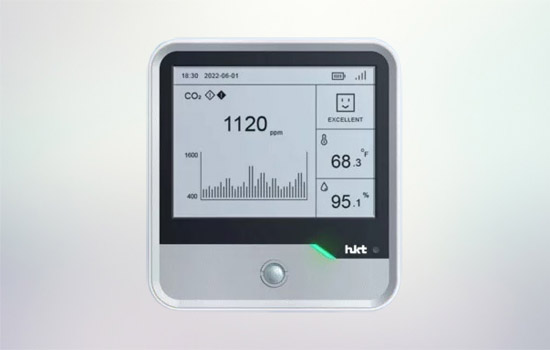

Indoor Ambience Sensor

9-in-1 Indoor Ambience Monitoring Sensor
Temperature,humidity, light, CO2
HCHO/O3 level, TVOC, barometric pressure
PM2.5, PM10 and motion
Dimension: 100.8 × 114 × 22 mm
IP30 Rating

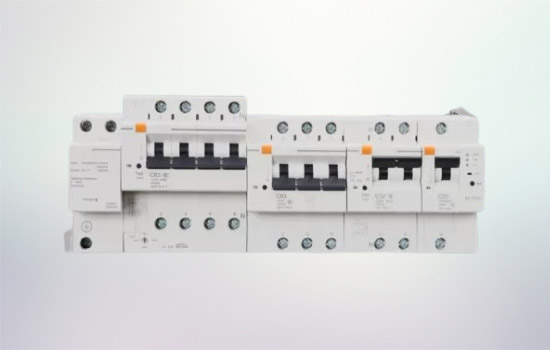

Smart Cicuit Breaker

Monitor status of all the circuits
30mAh leak current,0.1 sec circuit protection
Lack-voltage alarm: less than 100V alarm
Overvoltage protection
Over temperature protection
Lightning surge protection

LoRaWAN Gateways

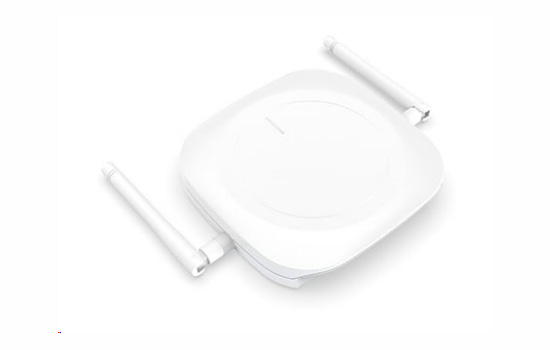

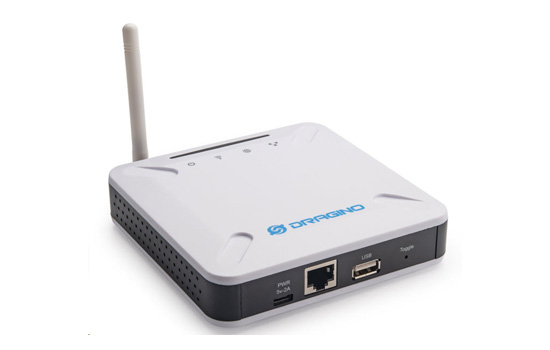

Indoor Gateway

WiFi and Ethernet support
Emulates 49x LoRa demodulators
10 programmable parallel demodulation
Pre-configured LoRaWAN frequency bands
Managed by Web GUI, SSH via LAN or WiFi
Includes a SX1308 LoRa concentrator

Indoor Gateway

WiFi and Ethernet support
WEB interface for related configuration
8 channel standard LoRaWAN based gateway
Support upgrade firmware by OTA or USB
Support one key reset
Support download log

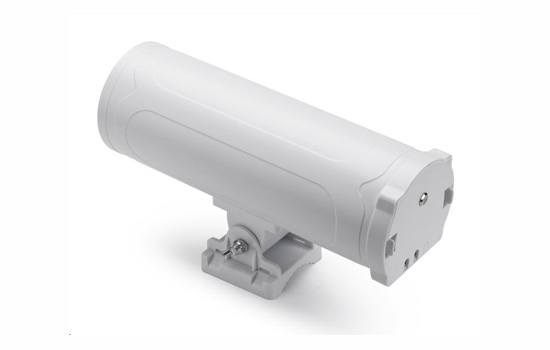

Outdoor Gateway

WiFi, Ethernet, 3G/4G Cellular support
Emulates 49x LoRa demodulators
10 programmable parallel demodulation
External fiber glass antenna
Built-in GPS module for location & timing
IP 65 + Lighting Protection

We understand that each client’s requirements are unique, so we are ready to provide a personalized consultative approach to our customers. Please contact us at info@anantics.com so that we may start the discussion about your organization’s needs.

Contact Us
